Category: programmer

Features

STM32 microcontrollers in 32-pin packages
extension with Arduino nano connectivity
mbed-enabled
on-board ST-LINK/V2-1 debugger/programmer
USB reenumeration capability: three different interfaces supported on USB:
Virtual Com port
mass storage
debug port
flexible board power supply:
USB VBUS
external source
three LEDs:
USB communication (LD1), power LED (LD2), user LED (LD3)
reset push button
supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs (AC6 SW4STM32, …)

DISTRIBUTION LIST

1 * NUCLEO-F303K8

Note: Due to different production batches, product’s color may be different.

Features

STM32 microcontroller with LQFP64 package
Two types of extension resources
Arduino Uno Revision 3 connectivity
STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
mbed-enabled (mbed.org)
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply
USB VBUS or external source(3.3 V, 5 V, 7 – 12 V)
Power management access point
Three LEDs
USB communication (LD1), user LED (LD2), power LED (LD3)
Two push buttons: USER and RESET
USB re-enumeration capability: three different interfaces supported on USB
Virtual Com port
Mass storage
Debug port
Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

DISTRIBUTION LIST

1 * NUCLEO-F303RE

Note: Due to different production batches, product’s color may be different.

Features

STM32 microcontroller with LQFP64 package
Two types of extension resources
Arduino Uno Revision 3 connectivity
STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
mbed-enabled (mbed.org)
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply
USB VBUS or external source(3.3 V, 5 V, 7 – 12 V)
Power management access point
Three LEDs
USB communication (LD1), user LED (LD2), power LED (LD3)
Two push buttons: USER and RESET
USB re-enumeration capability: three different interfaces supported on USB
Virtual Com port
Mass storage
Debug port
Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

DISTRIBUTION LIST

1 * NUCLEO-F091RC

Note: Due to different production batches, product’s color may be different.

Features

STM32 microcontroller with LQFP64 package
Two types of extension resources
Arduino Uno Revision 3 connectivity
STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
mbed-enabled (mbed.org)
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply
USB VBUS or external source(3.3 V, 5 V, 7 – 12 V)
Power management access point
Three LEDs
USB communication (LD1), user LED (LD2), power LED (LD3)
Two push buttons: USER and RESET
USB re-enumeration capability: three different interfaces supported on USB
Virtual Com port
Mass storage
Debug port
Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

DISTRIBUTION LIST

1 * NUCLEO-F070RB

Note: Due to different production batches, product’s color may be different.

Description

The ST-LINK is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The SWIM and JTAG/SWD interface is used to communicate with the STM8 or STM32 microcontroller located on your own application board.

On the PC side, the USB full speed interface is used to communicate with:

ST Visual Develop (STVD) or ST Visual Program (STVP) software from
STMicroelectronic’s for the STM8,
ATOLLIC, IAR and KEIL Integrated Development Environments for the STM32.

Key Features

5 V power supplied by USB connector
USB 2.0 full speed interface compatible
USB standard A to micro cable provided
SWIM specific features:
1.65 V to 5.5 V application voltage supported on SWIM interface
SWIM low speed and high speed modes supported
SWIM programming speed rate:
9.7 Kbytes/s in low speed
12.8 Kbytes/s in high speed
SWIM cable for connection to an application with pin headers or 2.54 mm pitch connector
JTAG/SWD specific features:
3 V to 3.6 V application voltage supported on JTAG/SWD interface and 5 V tolerant inputs
JTAG/SWD cable provided for connection to a standard JTAG 20-pin pitch 2.54 MM connector
Direct firmware update feature supported
Status LED which blinks during communication with PC
Operating temperature 0 to 50 degree

Distribution List:

1 * ST-LINK
1 * USB type A to micro cable
1 * 20-pin JTAG/SWD flat ribbon
1 * 4-pin SWIM separate-wires cable

Puuli ARM Ulink II 2 Emulator ARM Programmer USB JTAG Realview Debug Adapter Cortex

Features:

Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices, JTAG speed up to 10MHz
Ulink 2 USB JTAG Emulator ARM9 Cortex Keil Ulink II GH2
Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode)
ARM USB Compatible JTAG Adapter Debugger Keil Ulink-II
Plug-and-Play installation using standard Windows USB drivers
Conveniently carried out target hardware on-chip debugging (using on-chip JTAG, SWD, and OCDS), Flash Programming

Package Included:

1 X Puuli ARM Ulink II 2 Emulator ARM Programmer USB JTAG Realview Debug Adapter Cortex

Written by the director of ARM’s worldwide academic program, this volume gives computer science professionals and students an edge, regardless of their preferred coding language. For those with some basic background in digital logic and high-level programming, the book examines code relevant to hardware and peripherals found on today’s microcontrollers and looks at situations all programmers will eventually encounter.

The book’s carefully chosen examples teach easily transferrable skills that will help readers optimize routines and significantly streamline coding, especially in the embedded space.

This book is easily adaptable for classroom use. Instructors can access features that include a solutions manual, assembly language basics, problems, and actual code. The book also provides access to a fully functional evaluation version of the RealView Microcontroller Development Kit from Keil.

While it is still an important skill, getting good instruction in assembly language is not easy. The availability of languages such as C and Java foster the belief that engineers and programmers need only address problems at the highest levels of a program’s operation. Yet, even modern coding methods, when done well, require an understanding of basic assembly methods such as those gained by learning ARM. Certain features that are the product of today’s hardware, such as coprocessors or saturated math operations, can be accessed only through the hardware’s native instructions. For that matter, any programmer wishing to achieve results as exact as his or her intentions needs to possess a mastery of machine code basics as taught in the pages of this book.

Of the 13 billion microprocessor-based chips shipped in the last year, nearly 3 billion were ARM-based, making operational knowledge of ARM an essential component of any programmer’s tool kit. That it can be applied with most any language makes it invaluable.

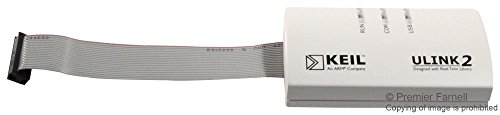

KEIL ULINK2 DEBUG ADAPTER, FOR ARM7, ARM9, 8051, C166

Delivering a solid introduction to assembly language and embedded systems, ARM Assembly Language: Fundamentals and Techniques, Second Edition continues to support the popular ARM7TDMI, but also addresses the latest architectures from ARM, including Cortex™-A, Cortex-R, and Cortex-M processors―all of which have slightly different instruction sets, programmer’s models, and exception handling.

Featuring three brand-new chapters, a new appendix, and expanded coverage of the ARM7™, this edition:

• Discusses IEEE 754 floating-point arithmetic and explains how to program with the IEEE standard notation
• Contains step-by-step directions for the use of Keil™ MDK-ARM and Texas Instruments (TI) Code Composer Studio™
• Provides a resource to be used alongside a variety of hardware evaluation modules, such as TI’s Tiva Launchpad, STMicroelectronics’ iNemo and Discovery, and NXP Semiconductors’ Xplorer boards

Written by experienced ARM processor designers, ARM Assembly Language: Fundamentals and Techniques, Second Edition covers the topics essential to writing meaningful assembly programs, making it an ideal textbook and professional reference.

STMICROELECTRONICS NUCLEO-F042K6 DEV BOARD, STM32F042K6 NUCLEO-32 MCU

Description

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full speed interface to communicate with STMicroelectronic’s ST Visual Develop (STVD) or ST Visual Program (STVP) software.

STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.

Features

5 V power supplied by a USB connector
USB 2.0 full speed compatible interface
USB standard A to mini B cable
SWIM specific features
1.65 V to 5.5 V application voltage supported on SWIM interface
SWIM low-speed and high-speed modes supported
SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
JTAG specific features
1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
Direct firmware update feature supported (DFU)
Status LED which blinks during communication with the PC
Operating temperature 0 to 50 degree

Distribution List:

1 * ST-LINK/V2
1 * USB type A to Mini-B cable
1 * 20-pin JTAG/SWD flat ribbon
1 * SWIM 100mil dual 4-pin connector cable
1 * SWIM 100mil 4-pin to standard ERNI connector cable

Description

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
STM8 applications use the USB full speed interface to communicate with STMicroelectronic’s ST Visual Develop (STVD) or ST Visual Program (STVP) software.
STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Key Features

5 V power supplied by a USB connector

USB 2.0 full speed compatible interface

USB standard A to mini B cable

SWIM specific features

1.65 V to 5.5 V application voltage supported on SWIM interface

SWIM low-speed and high-speed modes supported

SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed

SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector

SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector

JTAG specific features

1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs

JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector

Direct firmware update feature supported (DFU)

Status LED which blinks during communication with the PC

Operating temperature 0 to 50 Degree

PACKAGE CONTENT

ST-LINK/V2 x1

USB type A to Mini-B cable x 1

20-pin JTAG/SWD flat ribbon x 1

SWIM 100mil dual 4-pin connector cable x 1

SWIM 100mil 4-pin to standard ERNI connector cable x 1

1.100% Brand new and high quality.
2.Support the full range of STM32 SWD interface debugging, simple interface (including power supply), 4 line speed, stable work; Interface definition shell directly address! Don’t need to read instructions!
3.Support all series STM8 SWIM download debugging (common development environment such as IAR, STVD etc.) are supported. Support the software version is as follows:
ST – LINK Utility 2.0 and above
STVD 2 and above
STVP 3.2.3 and above
IAR EWARM V6.20 and above
IAR EWSTM8 V1.30 and above
KEIL RVMDK V4.21 and above
4.Support the firmware upgrade automatically, to ensure that the ST company product support. When they leave the firmware has been upgraded to the latest V2.J17.S4
5.Increase the 5 v power output, the output it can protect the I/O port, not afraid of error cause damage of ST – LINK V2!
6.Easy interface to use pure copper plating 2.54 spacing horn, with 20 cm DuPont line, can deal with different target board line sequence, flexible connection;
7.Use U disk aluminum alloy shell to protect the mainboard, convenient to carry, not afraid of static electricity, not afraid of tumbling.
8.Material: Metal, plastic, electronic parts
9.Color: Red, Blue, Green, Yellow, Black, Purple, Brown, Silver (We will send color at random, thank you for your understanding)
10.Size: Approx. 5.5 x 2 x 0.8cm (L*W*H)
11.What’s in the package:1 x ST-Link V2 STM8 STM32 Programmer + 1 x 20cm Debug DuPont Line

Specifications

5 V power supplied by a USB connector
USB 2.0 full speed compatible interface
USB standard A to mini B cable
SWIM specific features
1.65 V to 5.5 V application voltage supported on SWIM interface
SWIM low-speed and high-speed modes supported
SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector

DISTRIBUTION LIST

1 * ST-LINK/V2
1 * USB type A to Mini-B cable
1 * 20-pin JTAG/SWD flat ribbon
1 * SWIM 100mil dual 4-pin connector cable
1 * SWIM 100mil 4-pin to standard ERNI connector cable

Note: Due to different production batches, product’s color may be different.

1.100% Brand new and high quality.
2.Support the full range of STM32 SWD interface debugging, simple interface (including power supply), 4 line speed, stable work; Interface definition shell directly address! Don’t need to read instructions!
3.Support all series STM8 SWIM download debugging (common development environment such as IAR, STVD etc.) are supported. Support the software version is as follows:
ST – LINK Utility 2.0 and above
STVD 2 and above
STVP 3.2.3 and above
IAR EWARM V6.20 and above
IAR EWSTM8 V1.30 and above
KEIL RVMDK V4.21 and above
4.Support the firmware upgrade automatically, to ensure that the ST company product support. When they leave the firmware has been upgraded to the latest V2.J17.S4
5.Increase the 5 v power output, the output it can protect the I/O port, not afraid of error cause damage of ST – LINK V2!
6.Easy interface to use pure copper plating 2.54 spacing horn, with 20 cm DuPont line, can deal with different target board line sequence, flexible connection;
7.Use U disk aluminum alloy shell to protect the mainboard, convenient to carry, not afraid of static electricity, not afraid of tumbling.
8.Material: Metal, plastic, electronic parts
9.Color: Red, Blue, Green, Yellow, Black, Purple, Brown, Silver (We will send color at random, thank you for your understanding)
10.Size: Approx. 5.5 x 2 x 0.8cm (L*W*H)

What’s in the package:
1 x ST-Link V2 STM8 STM32 Programmer
1 x 20cm Debug DuPont Line

Manufacturer: Keil Tools Product Category: JTAG Debuggers RoHS: RoHS Compliant Details Product: JTAG Debuggers For Use With: ULINKpro Core: ARM Cortex A, ARM Cortex M, ARM Cortex R Interface Type: Serial, USB Operating Supply Voltage: 3.3 V Brand: Keil Tools Description/Function: Debug on a wide range of supported devices

The DJI Phantom 4 is the smartest flying camera drone from DJI, allowing you to capture superb aerial images on your iPhone or iPad. Not only does it fly intelligently with a tap and automatically create seamless tracking shots, it can autonomously avoid obstacles and do much more. Sense and avoid Twin front-facing optical sensors see obstacles, so if there’s something in the Phantom drone’s way it wil stop or fly around it – giving you the confidence to fly safely. Fly with touch In TapFly mode, tap the screen of your iPhone or iPad to move in a particular direction. And keep flying by tapping elsewhere on the screen. Visual tracking Now it’s a snap to fly while keeping the camera pointed steadily at a moving subject. ActiveTrack uses advanced visual tracking capabilities to fully automate tracking, so you get the perfect shot every time. Easy to fly Up to 24 satellites plus advanced Vision Positioning systems make for effortless flight. The Phantom 4 knows where it is, where you are, and flies exactly as you tell it to. Professional-quality imaging Shoot 4K video at 30fps, full HD 1080p video at up to 120fps for crisp slow motion, and 12 megapixel photos in DNG RAW for full editing creativity. High-speed fun A new sport mode capable of up to 45mph speeds makes flying even fun. Long flight times A large-capacity battery and a high-efficiency design give you more than 28 minutes of flight time when flying without satellite support. Comprehensive app control The free DJI GO app on your iPhone or iPad provides a live video feed, full manual camera controls, and access to all smart flight features including Follow Me, TapFly, and ActiveTrack.

For Standard/Enhanced/True-USB Willem EPROM programmer/All TOP series/EasyPro series/Wellon,Weilei series/SuperPRO series and all other brand universal programmer.

Device supports 5V 27,28,29,39,49 EPROM, EEPROM,Flash in PLCC32 package devices.

For Standard/Enhanced/True-USB Willem EPROM programmer/All TOP series/EasyPro series/Wellon, Weilei series/SuperPRO series and all other brand universal programmer.

It supports 5V and 3.3V devices, such as 27,28,29,39,49 EPROM, EEPROM,Flash devices. eg.27C64-27C512,29C256 etc.

Example of part number supported:

27C128 27C256 27C512A 27C64 27LV256 27LV512A 27LV64 28F256A AM27256;

AM27C64 AM27C128 AM27C256 AM27C512;

AT27BV256 AT27BV512 AT27C256R AT27C512R AT27LV256A AT27LV512A AT28C256 AT29C256 AT29LV256;

CAT28C256 CY7C274;

D27128 D27128A D27256 D27512 D27513 D2764 D2764A D27C128A D27C256 D27C512 D27C513 D27C64A D87C64;

EN27C512;

FM27C256 FM27C512;

HN27128G HN27128P HN27256G HN27512G HN2764G HN2764P HN27C256AG HN27C256G HN27C256HG HN27C512G HN27C64G HT27C512 HT27LC512 HT27PC256 HT27PC512 IS27C256 IS27C512 IS27HC256 IS27HC512;

M27128A M27256 M27512 M2764A M27C256B M27C512 M27C64A M27V256 M27V512 M27W256 M27W512M28C256 M28C64 M28C64C M28C64X M28F256 M28F256A;

M5L27128K M5L27128P M5L27256K M5L27256P M5L27512K M5L27512P M5L2764K M5L2764P M5M27C128K M5M27C128P M5M27C256K M5M27C256P M5M27C512K M5M27C512P;

MBM27128 MBM27256 MBM2764 MBM27C128 MBM27C256 MBM27C256A MBM27C512 MBM27C64 MX26C512A;

MX27C256 MX27C512 MX27L256 MX27L512 NMC27C128B NMC27C256 NMC27C256BN NMC27C512 NMC27C512AN NMC27C64 NMC27C64B SST27SF256 SST27SF512 TC54256AP TC54512AP TC57256AD TC57512AD TMS27C128 TMS27C256 TMS27C512 TMS27PC128 TMS27PC256 TMS27PC512 UPD27128 UPD27256 UPD2764 UPD27C256 UPD27C256A UPD27C512;

UPD27C64;

W27C512 W27E512;

X28C256 X28C64 X28HC256 XLS28C64B;

X28VC256 XL28C256 XL28C64.
