Category: programmer

This is a generic PLCC28-DIP24 adapter. It works for all TOP series/EasyPro series/Wellon,Weilei series/SuperPRO series and all other brand universal programmer.

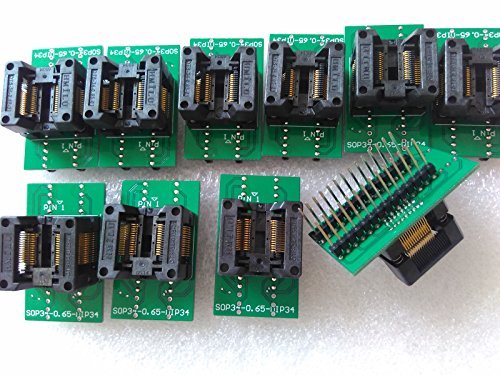

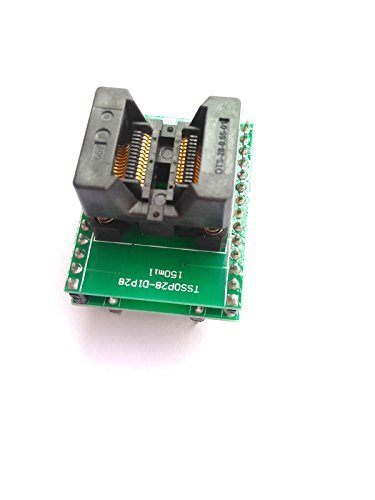

SSOP28 to DIP28 Socket CNV-SSOP-34/OTS-28(34)-0.65 IC programmer socket adapter G540 EZP2010 TOP3000

Programs devices with Vcc as low as 1.2V.
Built with 144 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages up to 144 pins.
The programmer operates in either PC hosted mode or stand-alone mode.

Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
Under stand-alone mode, the user controls the programmer via
20-characters, 4-line LCD display with 6-KEY
A CF (compact flash) card stores the project files.

ISP/ICP programming capability through optional ISP/ICP adapter.
Programming / testing features for TTL/CMOS logic ICs and memories.
In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.
Over-current and over-voltage protection for safety of the chip and programmer hardware.
Compatible with Windows XP / Vista / 7 / 8 (32/64 bit)
Only IC manufacturer approved programming algorithms provide high reliability.
Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
Includes the following advanced and powerful software functions:

Chip operation starts immediately upon proper chip insertion in Production Mode.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
Password protection provides security for project files and production volume control.
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial number generators are available as standard or customer-specific functions.
Log file provides production quality tracking.

Support devices with Vcc from 1.2V – 5V.
30% faster programming speed compared to SuperPro5000 with ARM9 MCU Processor + Linux ultra-fast algorithm processing engine.
Support files up to 256 GBytes.
Built with 144 universal pin-drivers. Universal adapters are available for various package types up to 144 pins. More efficient for new device support.
Stand-alone mode (No PC required) and PC hosted mode.
Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
Under stand-alone mode, the programmer is controlled via the 6-KEY keypad and the 20 character by 4 line LCD display.
A CF (compact flash) card is used to store the project files.
Cluster 1-15 units for flexible volume production. Operate multiple units to construct a concurrent multi-programming system.
ISP / ICP programming capability available via ISP / ICP adapter.
Over-current and over-voltage protection for safety of the chip and programmer hardware.
Compatible with Windows XP / Vista / 7 / 8 (32/64 bit)
Only IC manufacturer approved programming algorithms used for high reliability.
Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
Advanced and powerful software functions:
Production mode start chip operation the moment the chip is inserted properly.
Project function simplifies processes such as Device Selection, File Loading, Device Configuration Setting, Program Option, and Batch File Setting into one step.
Password for project files can be set for volume production control
Batch command combines device operations like Program, Verify,and Security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.

Features:
Brand new and high quality.
Universal SOIC,SOP8(EZ) SO8 TO Dip 8 Adapter 150mil IC.
High quality and durable.
Tested before shipping.
Easy to use.
programmer(1.27 Pitch) and all SOP8 narrow chips.
Suitable for ALL-11 Series,ALL-100GANG , LT-48 Series, SuperPRO Series, TOP Series etc.
Support Chips: 24CXX, 93CXX and all SOP8 narrow chips.
Package Included:
1 x SO8 SOP8 to DIP8 EZ Programmer adapter Socket

Features:
Support 218 IC manufacturer, 30493 pcs devices.
Support devices with Vcc from 1.2V to 5V.
Extremely fast speed hign than SUPERPRO/500P.
Built with 48 universal pin-drivers.
PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via
USB2.0 (high speed) to program a chip.
ISP/ICP programming capability available via ISP/ICP adaptor.
Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and
(10%~-10%) Vcc verification enhances programming reliability.

Advanced and Powerful Functions.
Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.
Over-current and over-voltage protection for safety of the chip and programmer hardware

Hardware & Electrical Specifications:
Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, BPROM, NVRAM, SPLD, CPLD, EPLD,
Firmware HUB, Microcontroller, MCU. Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , …
PC interface: USB2.0
Stand-alone Feature: None .
Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power:15W

Features:
Support 218 IC manufacturer, 30493 pcs devices.
Support devices with Vcc from 1.2V to 5V.
Extremely fast speed hign than SUPERPRO/500P.
Built with 48 universal pin-drivers.
PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via
USB2.0 (high speed) to program a chip.
ISP/ICP programming capability available via ISP/ICP adaptor.
Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and
(10%~-10%) Vcc verification enhances programming reliability.

Advanced and Powerful Functions.
Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.
Over-current and over-voltage protection for safety of the chip and programmer hardware

Hardware & Electrical Specifications:
Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, BPROM, NVRAM, SPLD, CPLD, EPLD,
Firmware HUB, Microcontroller, MCU. Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , …
PC interface: USB2.0
Stand-alone Feature: None .
Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power:15W

Import seat (0.65mm spacing), has a long service life, easy operation etc.! Applicable models and programmer. Such as: ALL-100GANG, ALL-11 series, LT-48 series, SuperPRO series, TOP series, all the programmer

This TSOP32 (S) adapter is a standard EPROM progrmmer adapter.

It will accept (8mm X 14mm) body width TSOP32 chips, such as SST39SF020A, SST39SF040, SST39LF512, SST39LF010, SST39LF020, SST39LF040,SST39VF512, SST39VF010, SST39VF020, SST39VF040 etc.

It is widely used in many different programmers.
It can be used on: All willem/TOP853/TOP2004/TOP2005/TOP2048 programmers, EasyPro programmer, SuperPRO and other programmers.

Supports 23,339 IC devices from 147 manufacturers and continuing.
Programs devices with Vcc as low as 1.2V.
Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds and 64Mb EEPROM in 43 seconds.
Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.
The programmer operates in either PC hosted mode.
Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
ISP/ICP programming capability through optional ISP/ICP adapter.
Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
Compatible with Windows Vista and Windows XP
Includes the following advanced and powerful software functions:
Chip operation starts immediately upon proper chip insertion in Production Mode.
The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
Password protection provides security for project files and production volume control.
The Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial number generators are available as standard or customer-specific functions.
A Log file provides quality tracking.

PSOP44/SOP44 to DIP44/SOP44/SOIC44 IC test socket programmer adapter/converter for 48-PIN ZIF Socket Programmers .

Specifications:
Patch size : 1.27mm
SuperPro series, SmartPro series, EasyPro series, TOP series, Wellon series, Labtool series or most other 48-PIN ZIF Socket Programmers can use this PSOP44 – DIP44 adapter.

Please note :
This PSOP44 – DIP44 adapter can not use on TL866 programmer, Willem programmer, TNM2000 or 5000 programmer !

Features:
-This adapter is OEM new.
-Tested well before shipping.
-Easy to use

Package Includes:
One PCS PSOP44 – DIP44 adapter

Features:

Brand new and high quality.

Universal SOIC,SOP8(EZ) SO8 TO Dip 8 Adapter 150mil IC.

High quality and durable.

Tested before shipping.

Easy to use.

programmer(1.27 Pitch) and all SOP8 narrow chips.

Suitable for ALL-11 Series,ALL-100GANG , LT-48 Series, SuperPRO Series, TOP Series etc.

Support Chips: 24CXX, 93CXX and all SOP8 narrow chips.

Box Size:2.6cm x 2.4cm x 2cm – 1.02inch x 0.94inch x 0.79inch.

Package Included:

1 x SO8 SOP8 to DIP8 EZ Programmer adapter Socket

NO Retail Box. Packed Safely in Bubble Bag.

Xeltek SuperPro 7000 is a device for programming EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR, NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, FWH, microcontrollers, standard micrologic circuits.

Features
Built with a universal 144-pin driver that is compatible with various package types.
Possibility to connect 99% of the existing microelectronic circuits in case you buy a corresponding adapter.
Powerful programming processor supports eMMC / NAND files up to 256 GB.
Supports Intel LR1 and LR2 eMMC modules (up to 64 GB).
Powerful new algorithm to program up to four chips simultaneously.
Customized 4-socket gang adapter + programming algorithm (Optional).
Three operation modes: PC hosted, stand-alone, LAN mode.
Self-calibration.
Automatic chip detection.
Improved overvoltage / overcurrent and ESD protection to avoid programmer damage.
Serial number generator.
Password can be set for project files.

Application
Device repair – re-flashing microchips, microcontrollers.
Flashing new microchips.
Serial manufacturing – microchips, microcontrollers programming.
Restoring data from microchips of solid-state drive.

Technical Specifications
Input/Output built-in 144 pin connector
Package Types DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, µBGA, CSP, SCSP
Interface USB 2.0
Software compatible OS Windows XP, Windows Vista, Windows 7 (32/64 bit)
Power Supply Input 90 V-250 V AC, output 12 V DC/1.5 A
Size, L × W × H 184 × 160 × 78 mm
Weight 0.8 kg (without package)

Compact design and useful
Suitable for ALL-11 Series, LT-48 Series, SuperPRO Series, TOP Series etc
programmer(1.27 Pitch) and all SOP8 narrow chips
Support Chips: 24CXX, 93CXX and all SOP8 narrow chips
Number of Pins: 8
Pin Length: Approx. 5.5mm
Overall Height: Approx. 26mm

Package Includes:

1x SOP8 to DIP8 Programmer Adapter Socket
Keywords: SOP8 to DIP8 Programmer adapter Socket High Quality IC socket

Compact design and useful
Suitable for ALL-11 Series, LT-48 Series, SuperPRO Series, TOP Series etc
programmer(1.27 Pitch) and all SOP8 narrow chips
Support Chips: 24CXX, 93CXX and all SOP8 narrow chips
Number of Pins: 8
Pin Length: Approx. 5.5mm
Overall Height: Approx. 26mm

Package Includes:

5x SOP8 to DIP8 Programmer Adapter Socket
Keywords: SOP8 to DIP8 Programmer adapter Socket High Quality IC socket

This TSOP32 adapter is a standard EPROM progrmmer adapter.It accepts 8mm X 20mm body width TSOP32 flash chips. It is widely used in many different programmers. It can be used on: All parallel willem programmer, GQ-3X, GQ-4X programmers, EasyPro programmer, SuperPRO and any other brand universal programmers.

Xeltek SupperPro611S suits the portable/convenient applications that includes:

car automotive field ECU chip tuning, airbag reset, mileage, satellite devices,BIOS refreshing, motherboard BIOS in-circuit upgrade,xBox

Wii gaming machines EPROM duplicate,Altera Xilinx JTAG, PIC/MCU development,newer laptop technology and newer desktop PC etc

Advanced and powerful functions

–Production mode start chip operation at the moment the chip is inserted in the socket properly.

–Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.

–Password can be set for project files and production volume control

–Batch command combines device operations like program, verify, security into a single command at any sequence.

–Serial numbers generators are available as standard or customer-specific functions.

–Log file is useful for quality tracking.

Hardware & Electrical Specifications:

–Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, Flash, NVRAM, PLD, Firmware HUB,Micro-controller, MCU . .

–Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP ect.

–PC interface: USB2.0

–Stand-alone Feature: Supported, Compact Flash Card (CF card not included)

–Electrical spec. of the AC adapter: AC input 90V – 250V, 50/60Hz,DC output 12V/2A; power:15W

–Mechanical parameter: Main unit: Size: 205*148*50 mm Weight: -Kg.

–Packing Box: Size 320*300*85 mm Weight: 1.8 Kg.

Includes Main unit with a DIP48 adapter, AC adapter, USB2.0 cable, user manual, software CD, register card

Specifications:
Pitch Size:1.7mm
Compatible Programmer:ALL-11 Series,ALL-100GANG,LT-48 Series,SuperPRO Series,TOP Series
Support Chips: 24CXX, 93CXX and all SOP8 narrow chips

Package Included:
1X SOP8 to DIP8 EZ Programmer Adapter

Programs devices with Vcc as low as 1.2V.
Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds.
Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.
The programmer operates in either PC hosted mode or stand-alone mode.
Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad. A CF (compact flash) card stores the project files. In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.
ISP/ICP programming capability through optional ISP/ICP adapter.
Programming / testing features for TTL/CMOS logic ICs and memories.
Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
Compatible with Windows XP / Vista / 7 / 8 (32/64 bit).
Includes the following advanced and powerful software functions:
Chip operation starts immediately upon proper chip insertion in Production Mode.
The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
Password protection provides security for project files and production volume control.
The Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial number generators are available as standard or customer-specific functions.
A Log file provides quality tracking
