Category: programmer

Includes the following advanced and powerful software functions:

Chip operation starts immediately upon proper chip insertion in Production Mode.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
Password protection provides security for project files and production volume control.
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial number generators are available as standard or customer-specific functions.
Log file provides production quality tracking.

Xeltek SuperPro 6100 is a device for programming EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR, NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, FWH, microcontrollers, standard micrologic circuits.

Features
Built with a universal 144-pin driver that is compatible with various package types.
Possibility to connect 99% of the existing microelectronic circuits in case you buy a corresponding adapter.
Support devices with Vcc from 1.2V – 5V.
Two operation modes: PC hosted mode for research, stand-alone mode for manufacturing.
In stand-alone mode the operator may connect multiple units (up to 15 in one cluster) to construct a concurrent multi-programming system.
Over-current and over-voltage protection for safety of the chip and programmer hardware.
Software updates.
RoHS compatible, CE, ISO 9001, ISO 14001 certificates.

Application
Device repair – re-flashing microchips, microcontrollers.
Flashing new microchips.
Serial manufacturing – microchips, microcontrollers programming.
Restoring data from microchips of solid-state drive.

Technical Specifications
Input/Output: built-in 144 pin connector
Package Types: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, µBGA, CSP, SCSP
Interface: USB 2.0
Software compatible OS: Windows XP, Windows Vista, Windows 7 (32/64 bit)
Power Supply: Input 100 V-250 V AC, output 12 V DC/1.5 A
Size, L × W × H: 216 × 148 × 94 mm
Weight: 1.6 kg (without package)

Support devices with Vcc from 1.2V – 5V.
30% faster programming speed compared to SuperPro5000 with ARM9 MCU Processor + Linux ultra-fast algorithm processing engine.
Support files up to 256 GBytes.
Built with 144 universal pin-drivers. Universal adapters are available for various package types up to 144 pins. More efficient for new device support.
Stand-alone mode (No PC required) and PC hosted mode.

Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
Under stand-alone mode, the programmer is controlled via the 6-KEY keypad and the 20 character by 4 line LCD display.
A CF (compact flash) card is used to store the project files.

Cluster 1-15 units for flexible volume production. Operate multiple units to construct a concurrent multi-programming system.
ISP / ICP programming capability available via ISP / ICP adapter.
Over-current and over-voltage protection for safety of the chip and programmer hardware.
Compatible with Windows XP / Vista / 7 / 8 (32/64 bit).
Only IC manufacturer approved programming algorithms used for high reliability.
Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
Advanced and powerful software functions:

Production mode start chip operation the moment the chip is inserted properly;
Project function simplifies processes such as Device Selection, File Loading, Device Configuration Setting, Program Option, and Batch File Setting into one step;
Password for project files can be set for volume production control;
Batch command combines device operations like Program, Verify,and Security into a single command at any sequence;
Serial numbers generators are available as standard or customer-specific functions.

Log file is useful for quality tracking.
Stand-Alone (PC-Free).
Built-in Processor is ARM9 RISC MCU.
Free User Requested Device Update.
Windows Support (Win XP/Vista/7/8 32/64 bit)
RoHS & CE Compliance

Xeltek SuperPro 610P is a device for programming EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR, NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, FWH, microcontrollers, standard micrologic circuits.

Features
Universal 48-pin driver supports today’s most complex devices.
Possibility to connect 99% of the existing microelectronic circuits in case you buy a corresponding adapter.
Programs devices with Vcc as low as 1.2V.
In-system programming (ISP / ICP) capability.
Programming / testing features for TTL/CMOS logic ICs and memories.
Software updates.
RoHS compatible, CE, ISO 9001, ISO 14001 certificates.

Application
Device repair – re-flashing microchips, microcontrollers.
Flashing new microchips.
Serial manufacturing – microchips, microcontrollers programming.
Restoring data from microchips of solid-state drive.

Technical Specifications
Input/Output: built-in 48 pin connector
Package Types: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, µBGA, CSP, SCSP
Interface: USB 2.0
Software: compatible OS Windows XP, Windows Vista, Windows 7, Windows 8 (32/64 bit)
Power Supply: Input 90 V-250 V AC, output 12 V DC/1.5 A
Size, L × W × H: 178 × 130 × 40 mm
Weight: 0.38 kg (without package)

Original Xeltek USB Superpro 610P Universal Programmer

Operating System: Windows XP, Vista and Win7

Xeltek USB Superpro 610P Features:
  Support 218 IC manufacturer, 30493 pcs devices.
Support devices with Vcc from 1.2V to 5V.
Extremely fast speed hign than SUPERPRO/500P.
Built with 48 universal pin-drivers.
PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
ISP/ICP programming capability available via ISP/ICP adaptor.
Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.

Advanced and Powerful Functions.
  Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.
Over-current and over-voltage protection for safety of the chip and programmer hardware.

Accessories:
  Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, software CD (include: install software, user manual), register card
Optional accessories: adaptor in varies packages
Full 13pcs of Adapters

– Supports 31,200+ IC devices from 220 manufacturers and continuing to grow. Check this link for the list of supported devices. – Programs devices with Vcc as low as 1.2V. – Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds and 64Mb EEPROM in 43 seconds. – Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages. – ISP/ICP programming capability through optional ISP/ICP adapter. – Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability. – Provides over-current and over-voltage protection for safety of the chip and programmer hardware.

Lowest-cost, Ultra-High Speed Universal Device Programmer; USB 2.0 Interfaced.

Programs devices with Vcc as low as 1.2V.
Ultra fast programming.
Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.
The programmer operates in PC hosted mode.
Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
ISP/ICP programming capability through optional ISP/ICP adapter.
Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
Compatible with Windows 7 & Vista & XP 32/64 bit
Includes the following advanced and powerful software functions:
Chip operation starts immediately upon proper chip insertion in Production Mode.
The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
Password protection provides security for project files and production volume control.
The Batch command combines device operations like program, verify, security into a single command at any sequence.
Auto Increment Function option to indicate an automatic increase in the serial number written to each chip.
A Log file provides quality tracking.
CE and RoHS Compliant.
Windows Support (Win XP/Vista/7 32/64 bit)
RoHS & CE Compliance.
Items Included:

SuperPro M Programmer w/ 48pin driver/
AC adapter/
Software CD/
USB Cable

Description:
SOP8 to DIP8 Conversion Adapter
Application: ALL-11 series, LT-48 series, SuperPRO series, TOP series,
all the programmer (1.27 feet distance) for all SOP8 narrow chip
Support chips: 24CXX, 93CXX

Package included:
1 x 24cxx 93cxx SOP8 to DIP8 Conversion Adapter EZ Programmer Adapter Socket

– Supports 37,000 IC devices from 224 manufacturers and continuing to grow. Check this link for the list of supported devices.
– Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds.
– Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.
– The programmer operates in either PC hosted mode or stand-alone mode.
– ISP/ICP programming capability through optional ISP/ICP adapter.
– Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
– Provides over-current and over-voltage protection for safety of the chip and programmer hardware.

Features: Ultra-Fast Programming, Built-in 48 Universal Pin Drivers
IC Interface Type: Parallel, Serial
IC Product Type: Programmer, Universal
Kit Contents: SuperPro M Programmer with a DIP48 Adapter, AC Adapter, Software CD
No. of Devices Supported: 19880
SVHC: To Be Advised
Supported Families:

– Programming speed up to 30% faster than SuperPro501S. – Supports 37,900+ IC devices from 227 manufacturers and continuing to grow. Check this link for the list of supported devices. – Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds. – Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages. – The programmer operates in either PC hosted mode or stand-alone mode. – ISP/ICP programming capability through optional ISP/ICP adapter. – Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability. – Provides over-current and over-voltage protection for safety of the chip and programmer hardware. Unauthorized/Counterfeit products don’t qualify for 2 year warranty and after sales tech support. The independent use or installation of such counterfeits into other equipment may result in, amongst other things, poor performance, malfunction, and/or serious injury. We have no responsibility for any damage arising from or in connection with counterfeit products. For our customers to reduce their risk of receiving counterfeits we recommend they purchase directly from Xeltek or through our authorized distributors. If you have any questions, please contact us.

SCT’s handheld automotive performance products increase your vehicle’s horsepower, torque and throttle response by optimizing your vehicles PCM (engine management computer). Instead of optimizing your vehicle’s PCM (engine management computer) for performance, SCT’s Fuel Economy products optimize your vehicle’s PCM for maximum fuel economy. High horsepower add-on’s such as superchargers and nitrous oxide often require “custom tuning” in order to optimize your vehicle’s PCM for such a large increase in horsepower and torque. SCT offers custom tunable products specifically designed for these types of applications and has a network of custom tuning dealers worldwide that can custom tune your vehicle for these types of performance modifications. SCT Pre-Loaded Tunes are designed for stock or lightly modified vehicles (cold air kits, exhaust systems, gear ratio changes etc.) Custom Tunes are created by one of SCT’s custom tuning dealers worldwide and are specifically designed for your vehicle and its modifications. SCT’s Custom Tuning dealers have complete control over your vehicles PCM using SCT’s Advantage III Custom Tuning software and will optimize your vehicles performance for simple add-ons such as cold air kits or for high horsepower modifications such as superchargers, turbo kits or nitrous oxide.

SCT’s handheld automotive performance products increase your vehicle’s horsepower, torque and throttle response by optimizing your vehicles PCM (engine management computer). Instead of optimizing your vehicle’s PCM (engine management computer) for performance, SCT’s Fuel Economy products optimize your vehicle’s PCM for maximum fuel economy. High horsepower add-on’s such as superchargers and nitrous oxide often require “custom tuning” in order to optimize your vehicle’s PCM for such a large increase in horsepower and torque. SCT offers custom tunable products specifically designed for these types of applications and has a network of custom tuning dealers worldwide that can custom tune your vehicle for these types of performance modifications. SCT Pre-Loaded Tunes are designed for stock or lightly modified vehicles (cold air kits, exhaust systems, gear ratio changes etc.) Custom Tunes are created by one of SCT’s custom tuning dealers worldwide and are specifically designed for your vehicle and its modifications. SCT’s Custom Tuning dealers have complete control over your vehicles PCM using SCT’s Advantage III Custom Tuning software and will optimize your vehicles performance for simple add-ons such as cold air kits or for high horsepower modifications such as superchargers, turbo kits or nitrous oxide.

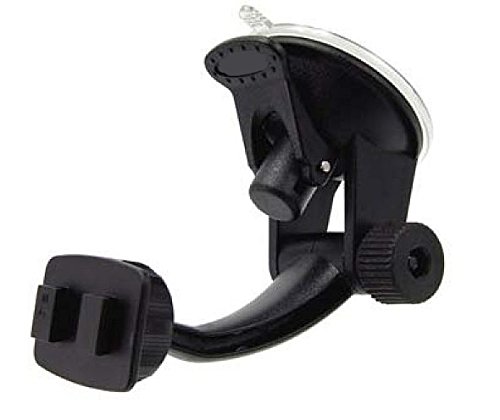

These come with two tabs which fit the dual slots on the back of the device. The suction cup mount attaches to any smooth flat surface. Swivels and pivots.

SCT’s handheld automotive performance products increase your vehicle’s horsepower, torque and throttle response by optimizing your vehicles PCM (engine management computer). Instead of optimizing your vehicle’s PCM (engine management computer) for performance, SCT’s Fuel Economy products optimize your vehicle’s PCM for maximum fuel economy. High horsepower add-on’s such as superchargers and nitrous oxide often require “custom tuning” in order to optimize your vehicle’s PCM for such a large increase in horsepower and torque. SCT offers custom tunable products specifically designed for these types of applications and has a network of custom tuning dealers worldwide that can custom tune your vehicle for these types of performance modifications. SCT Pre-Loaded Tunes are designed for stock or lightly modified vehicles (cold air kits, exhaust systems, gear ratio changes etc.) Custom Tunes are created by one of SCT’s custom tuning dealers worldwide and are specifically designed for your vehicle and its modifications. SCT’s Custom Tuning dealers have complete control over your vehicles PCM using SCT’s Advantage III Custom Tuning software and will optimize your vehicles performance for simple add-ons such as cold air kits or for high horsepower modifications such as superchargers, turbo kits or nitrous oxide. 3rd party resellers of SCT products are not affiliated with SCT.

Please Message us to get the TL866CS High-Performance Universal USB Programmer Device Support List !!! Thank you very much for your time.
Features: TL866CS VS. TL866A
1. ICSP interface (6-pin interface of the programmer right side) is limited to the TL866A model.
2. Partly Microchip’s MCU with More than 40pins require the use of the TL866A for ICSP interface programming . Most of Microchip’s PICs MCU support programming on ICSP and 40PIN seat.
3. About ATMEGAxxxx and SYNCMOS’s MCU SM89xxx SM59xxx. TL866A support serial programming on ICSP and parallel programming on seat. TL886CS only support parallel programming on seat.
4. AT45DBxxxx can only be programmed using the ICSP interface (TL866A only).
5. To all other chips. TL866A and TL866CS no diffrent. Both programmers work with genuine TL866 Adapters for devices up to 48 pins.
Package include(12 products with 8 adapters Socket):
1. SOP16–DIP16 Adapter
2. 200mil-208mil SOP8–DIP8 Adapter
3. 150mil SOP8–DIP8 Adapter
4 PLCC44–DIP40 Adapter
5. PLCC32–DIP32 Adapter
6. PLCC28–DIP24 Adapter
7. PLCC20–DIP20 Adapter
8. 8pinDIP SMD Adapter
9. PLCC IC Extractor
10. CD with PDF file and install file
11. TL866CS HIGH SPEED PROGRAMMER
12. USB 2.0 12Mbps Interface
Welcome to contact us for more details

Unauthorized/Counterfeit products don’t qualify for 2 year warranty and after sales tech support. The independent use or installation of such counterfeits into other equipment may result in, among other things, poor performance, malfunction, and/or serious injury. We have no responsibility for any damage arising from or in connection with counterfeit products. For our customers to reduce their risk of receiving counterfeits we recommend they purchase directly from Xeltek or through our authorized distributors. If you have any questions, please contact us.

Language: English,Russian,Arabic,Frech,Polski,Turkish,Persian,Chinese,Package includes: programmer,USB Cable,ISP Cable,Installation CD and User Manual.TNM Programmer is one of the smallest universal programmer in the World.Supports Over 11000 Common Microcontrollers , MCU, CPLD, FPGA, EPROM, EEPROM, FLASH (Include NAND large-capacity & high-density Flash Memory),GAL chips.40 Pin ZIF SOCKET.ISP Cable For ATMEL 89S5X, AVR, PIC.2 Times Faster than Model 1000+.JTAG Cable For Xilinx FPGA and CPLD , ALTERA CPLD and FPGA.JAM and SVF Player For Programming JTAG Devices.Digital IC Tester For 7000/4000/SRAM.40 Pin ZIF Socket and high-speed True USB Interface.Palm-sized and Portable.Support Over 11000 Common Microcontrollers, CPLD, FPGA, EPROM, EEPROM, FLASH, GAL.Support NAND large-capacity & high-density Flash Memory, that is not other universal programmers offered.For example:HYNIX: HY27U/HY29F…MICRON: MT29F…SAMSUNG: K9F/K9K/K9G…Auto detection of popular flash Memories/Microcontrollers with Device ID.400Kb/s Fast ISP Cable For ATMEL 89S5X, AVR, PIC (Programming ATMEGA 128 in less than 10 Sec).JTAG Cable For Xilinx FPGA(with JEDEC and SVF Files) and CPLD , ALTERA CPLD and FPGA(with Retry Capability).JAM and SVF Player For Programming JTAG Devices.Support Intel Hex, bin, Svf, JAM, Xilinx Jed and bit Files.Support Device: VCC from 2.5V to 6.5V ; VPP from 0V to 25V.USB Powered (No Need For External Supply).Automatic Device Identification & Device Insertion Notification.User Friendly Software For XP/ VISTA / Windows7 (32-64 bits).Free Lifetime Software Upgrade.
